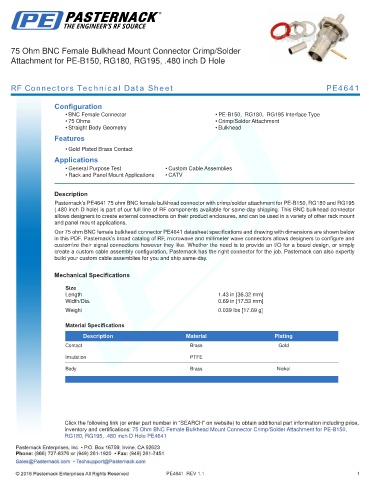

75 Ohm BNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for PE-B150, RG180, RG195, .480 inch D Hole

RF Connectors Technical Data Sheet PE4641

Configuration
• BNC Female Connector • PE-B150, RG180, RG195 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
• Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE4641 75 ohm BNC female bulkhead connector with crimp/solder attachment for PE-B150, RG180 and RG195
(.480 inch D hole) is part of our full line of RF components available for same-day shipping. This BNC bulkhead connector
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
Our 75 ohm BNC female bulkhead connector PE4641 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.43 in [36.32 mm]
Width/Dia. 0.69 in [17.53 mm]
.
Weight 0.039 lbs [17.69 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for PE-B150,
RG180, RG195, .480 inch D Hole PE4641

PE4641 REV 1.1 1
