75 Ohm BNC Female Bulkhead Connector Crimp/
Solder Attachment For PE-B305, .480 inch D Hole

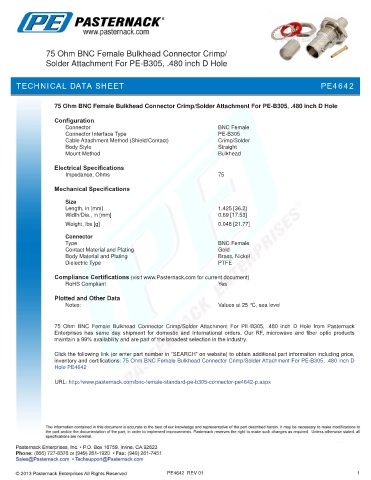

TECHNICAL DATA SHEET PE4642

75 Ohm BNC Female Bulkhead Connector Crimp/Solder Attachment For PE-B305, .480 inch D Hole

Configuration
Connector BNC Female
Connector Interface Type PE-B305
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.425 [36.2]
Width/Dia., in [mm] 0.69 [17.53]
.
Weight, lbs [g] 0.048 [21.77]
Connector
Type BNC Female
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm BNC Female Bulkhead Connector Crimp/Solder Attachment For PE-B305, .480 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Connector Crimp/Solder Attachment For PE-B305, .480 inch D
Hole PE4642

URL: http://www.pasternack.com/bnc-female-standard-pe-b305-connector-pe4642-p.aspx

PE4642 REV 01 1
