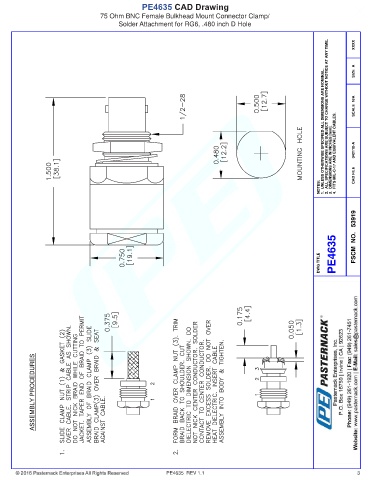

PE4635 CAD Drawing
75 Ohm BNC Female Bulkhead Mount Connector Clamp/
Solder Attachment for RG6, .480 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042110-A

NOTES: CAD FILE

DWG TITLE PE4635 FSCM NO. 53919

ASSEMBLY PROCEDURES

PE4635 REV 1.1 3
