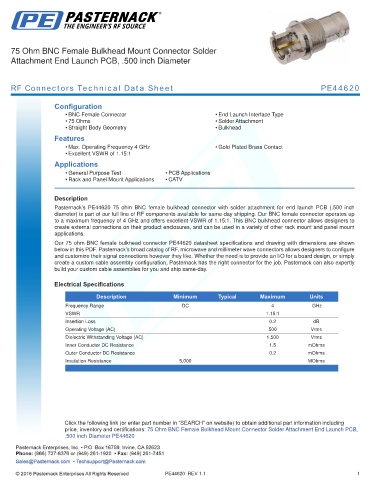

75 Ohm BNC Female Bulkhead Mount Connector Solder
Attachment End Launch PCB, .500 inch Diameter

RF Connectors Technical Data Sheet PE44620

Configuration
• BNC Female Connector • End Launch Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Excellent VSWR of 1.15:1
Applications
• General Purpose Test • PCB Applications
• Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE44620 75 ohm BNC female bulkhead connector with solder attachment for end launch PCB (.500 inch
diameter) is part of our full line of RF components available for same-day shipping. Our BNC female connector operates up
to a maximum frequency of 4 GHz and offers excellent VSWR of 1.15:1. This BNC bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our 75 ohm BNC female bulkhead connector PE44620 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.15:1
Insertion Loss 0.2 dB
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 0.2 mOhms
Insulation Resistance 5,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm BNC Female Bulkhead Mount Connector Solder Attachment End Launch PCB,
.500 inch Diameter PE44620

PE44620 REV 1.1 1
