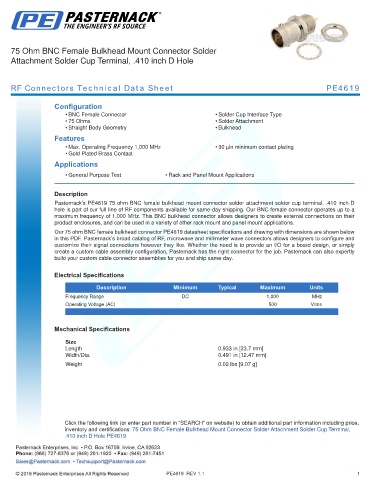

75 Ohm BNC Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .410 inch D Hole

RF Connectors Technical Data Sheet PE4619

Configuration
• BNC Female Connector • Solder Cup Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 1,000 MHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4619 75 ohm BNC female bulkhead mount connector solder attachment solder cup terminal, .410 inch D
hole is part of our full line of RF components available for same-day shipping. Our BNC female connector operates up to a
maximum frequency of 1,000 MHz. This BNC bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm BNC female bulkhead connector PE4619 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 0.933 in [23.7 mm]
Width/Dia. 0.491 in [12.47 mm]
.
Weight 0.02 lbs [9.07 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal,
.410 inch D Hole PE4619
