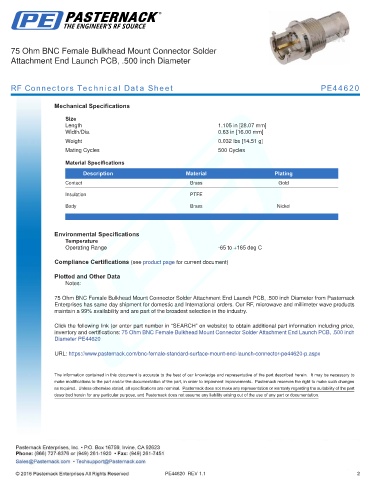

75 Ohm BNC Female Bulkhead Mount Connector Solder
Attachment End Launch PCB, .500 inch Diameter

RF Connectors Technical Data Sheet PE44620

Mechanical Specifications

Size
Length 1.105 in [28.07 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.032 lbs [14.51 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm BNC Female Bulkhead Mount Connector Solder Attachment End Launch PCB, .500 inch Diameter from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Mount Connector Solder Attachment End Launch PCB, .500 inch
Diameter PE44620

URL: https://www.pasternack.com/bnc-female-standard-surface-mount-end-launch-connector-pe44620-p.aspx

PE44620 REV 1.1 2
