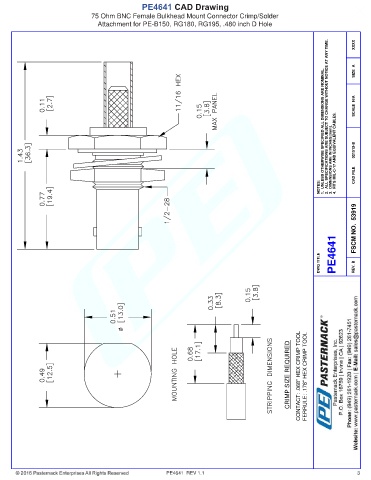

PE4641 CAD Drawing
75 Ohm BNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for PE-B150, RG180, RG195, .480 inch D Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 021513-B
NOTES: CAD FILE
FSCM NO. 53919
DWG TITLE PE4641 REV. B
CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .178" HEX CRIMP TOOL
PE4641 REV 1.1 3
