Page 684 - TNC to Double Banana RF Connector Datasheets

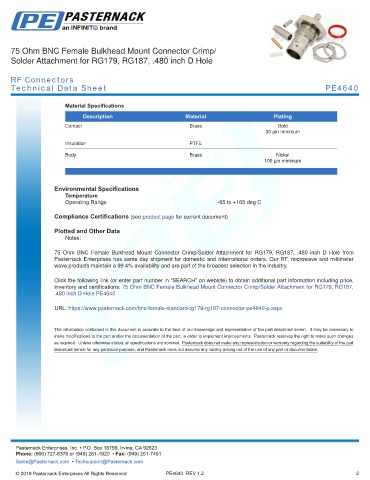

75 Ohm BNC Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG179, RG187, .480 inch D Hole

RF Connectors
Technical Data Sheet PE4640

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG179, RG187, .480 inch D Hole from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG179, RG187,
.480 inch D Hole PE4640

URL: https://www.pasternack.com/bnc-female-standard-rg179-rg187-connector-pe4640-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4640 REV 1.2 2
