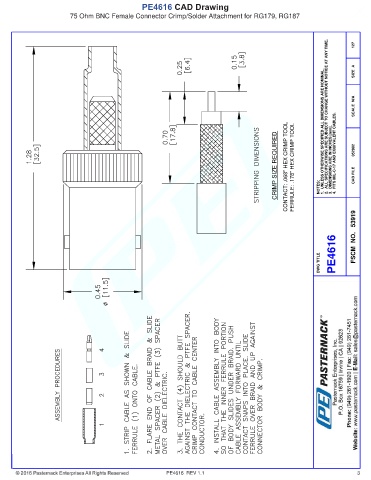

PE4616 CAD Drawing
75 Ohm BNC Female Connector Crimp/Solder Attachment for RG179, RG187
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .178" HEX CRIMP TOOL NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052902 CAD FILE
DWG TITLE PE4616 FSCM NO. 53919
