75 Ohm BNC Female Connector Solder Attachment
4 Hole Flange Turret Terminal, .531 inch Hole Spacing

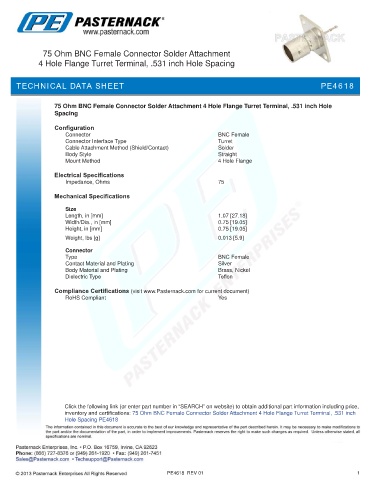

TECHNICAL DATA SHEET PE4618

75 Ohm BNC Female Connector Solder Attachment 4 Hole Flange Turret Terminal, .531 inch Hole
Spacing

Configuration
Connector BNC Female
Connector Interface Type Turret
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Size
Length, in [mm] 1.07 [27.18]
Width/Dia., in [mm] 0.75 [19.05]
Height, in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.013 [5.9]
Connector
Type BNC Female
Contact Material and Plating Silver
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Connector Solder Attachment 4 Hole Flange Turret Terminal, .531 inch
Hole Spacing PE4618

PE4618 REV 01 1
