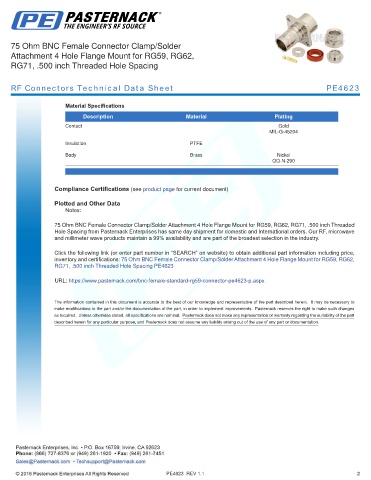

75 Ohm BNC Female Connector Clamp/Solder
Attachment 4 Hole Flange Mount for RG59, RG62,
RG71, .500 inch Threaded Hole Spacing

RF Connectors Technical Data Sheet PE4623

Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204

Insulation PTFE
Body Brass Nickel
QQ-N-290

.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm BNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG59, RG62, RG71, .500 inch Threaded
Hole Spacing from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave
and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG59, RG62,
RG71, .500 inch Threaded Hole Spacing PE4623

URL: https://www.pasternack.com/bnc-female-standard-rg59-connector-pe4623-p.aspx

PE4623 REV 1.1 2
