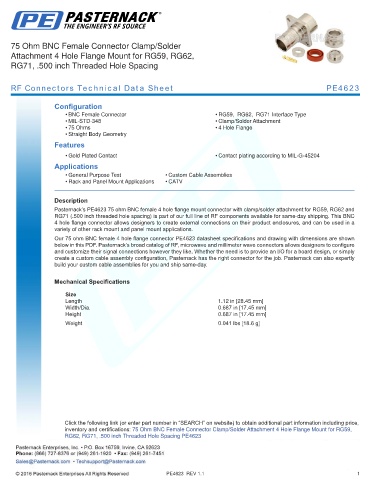

75 Ohm BNC Female Connector Clamp/Solder
Attachment 4 Hole Flange Mount for RG59, RG62,
RG71, .500 inch Threaded Hole Spacing

RF Connectors Technical Data Sheet PE4623

Configuration
• BNC Female Connector • RG59, RG62, RG71 Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 75 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
• Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE4623 75 ohm BNC female 4 hole flange mount connector with clamp/solder attachment for RG59, RG62 and
RG71 (.500 inch threaded hole spacing) is part of our full line of RF components available for same-day shipping. This BNC
4 hole flange connector allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
Our 75 ohm BNC female 4 hole flange connector PE4623 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.12 in [28.45 mm]
Width/Dia. 0.687 in [17.45 mm]
Height 0.687 in [17.45 mm]
.
Weight 0.041 lbs [18.6 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG59,
RG62, RG71, .500 inch Threaded Hole Spacing PE4623

PE4623 REV 1.1 1
