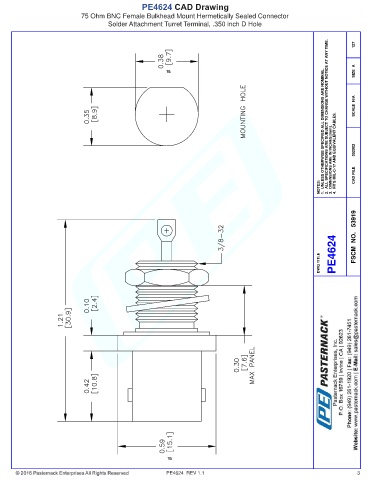

PE4624 CAD Drawing
75 Ohm BNC Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Turret Terminal, .350 inch D Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052902
NOTES: CAD FILE
DWG TITLE PE4624 FSCM NO. 53919
PE4624 REV 1.1 3
