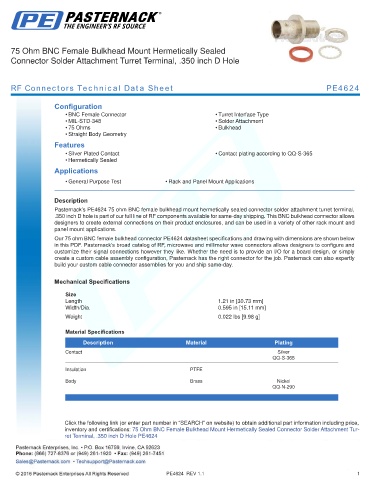

Page 710 - TNC to Double Banana RF Connector Datasheets

75 Ohm BNC Female Bulkhead Mount Hermetically Sealed
Connector Solder Attachment Turret Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4624

Configuration
• BNC Female Connector • Turret Interface Type
• MIL-STD-348 • Solder Attachment
• 75 Ohms • Bulkhead
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
• Hermetically Sealed
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4624 75 ohm BNC female bulkhead mount hermetically sealed connector solder attachment turret terminal,
.350 inch D hole is part of our full line of RF components available for same-day shipping. This BNC bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our 75 ohm BNC female bulkhead connector PE4624 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.21 in [30.73 mm]
Width/Dia. 0.595 in [15.11 mm]
.
Weight 0.022 lbs [9.98 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Tur-
ret Terminal, .350 inch D Hole PE4624
