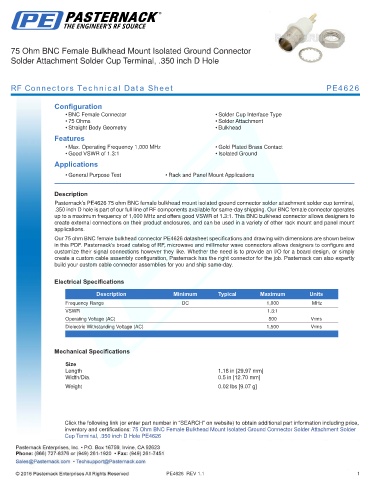

75 Ohm BNC Female Bulkhead Mount Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4626

Configuration
• BNC Female Connector • Solder Cup Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • Isolated Ground
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4626 75 ohm BNC female bulkhead mount isolated ground connector solder attachment solder cup terminal,
.350 inch D hole is part of our full line of RF components available for same-day shipping. Our BNC female connector operates
up to a maximum frequency of 1,000 MHz and offers good VSWR of 1.3:1. This BNC bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our 75 ohm BNC female bulkhead connector PE4626 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications
Size
Length 1.18 in [29.97 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.02 lbs [9.07 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Mount Isolated Ground Connector Solder Attachment Solder
Cup Terminal, .350 inch D Hole PE4626

PE4626 REV 1.1 1
