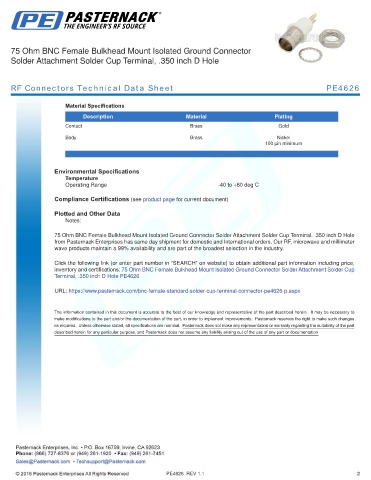

75 Ohm BNC Female Bulkhead Mount Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4626

Material Specifications
Description Material Plating
Contact Brass Gold

Body Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm BNC Female Bulkhead Mount Isolated Ground Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Bulkhead Mount Isolated Ground Connector Solder Attachment Solder Cup
Terminal, .350 inch D Hole PE4626

URL: https://www.pasternack.com/bnc-female-standard-solder-cup-terminal-connector-pe4626-p.aspx

PE4626 REV 1.1 2
