75 Ohm BNC Female Bulkhead Hermetically Sealed Connector
Solder Attachment Turret Terminal, .480 inch D Hole

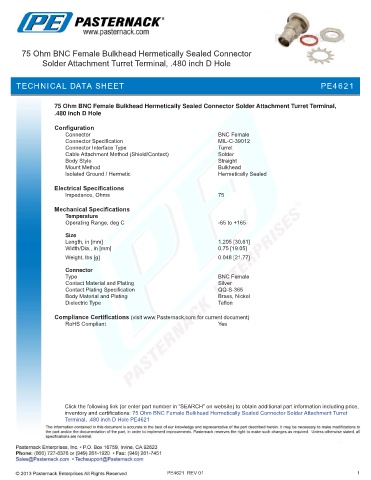

TECHNICAL DATA SHEET PE4621

75 Ohm BNC Female Bulkhead Hermetically Sealed Connector Solder Attachment Turret Terminal,
.480 inch D Hole

Configuration
Connector BNC Female
Connector Specification MIL-C-39012
Connector Interface Type Turret
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead
Isolated Ground / Hermetic Hermetically Sealed

Electrical Specifications
Impedance, Ohms 75
Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.205 [30.61]
Width/Dia., in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.048 [21.77]
Connector
Type BNC Female
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
