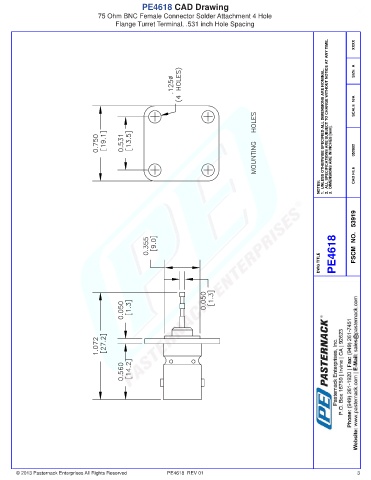

PE4618 CAD Drawing
75 Ohm BNC Female Connector Solder Attachment 4 Hole
Flange Turret Terminal, .531 inch Hole Spacing

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 052902

NOTES: CAD FILE

DWG TITLE PE4618 FSCM NO. 53919

© 2013 Pasternack Enterprises All Rights Reserved PE4618 REV 01 3
