75 Ohm BNC Female Connector Solder Attachment 4 Hole
Flange Solder Cup Terminal, .718 inch Hole Spacing

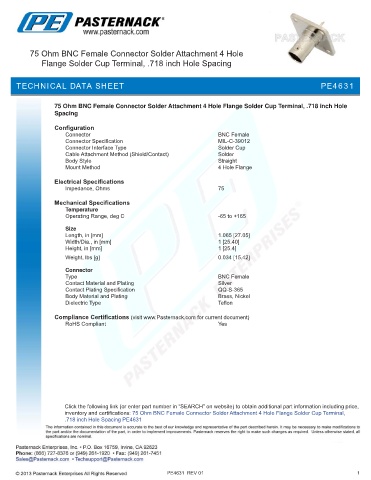

TECHNICAL DATA SHEET PE4631

75 Ohm BNC Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .718 inch Hole
Spacing

Configuration
Connector BNC Female
Connector Specification MIL-C-39012
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.065 [27.05]
Width/Dia., in [mm] 1 [25.40]
Height, in [mm] 1 [25.4]
.
Weight, lbs [g] 0.034 [15.42]
Connector
Type BNC Female
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal,
.718 inch Hole Spacing PE4631

PE4631 REV 01 1
