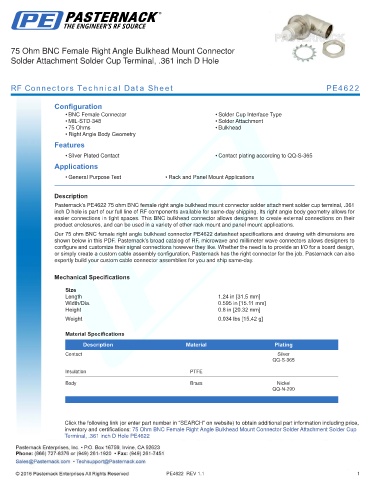

75 Ohm BNC Female Right Angle Bulkhead Mount Connector
Solder Attachment Solder Cup Terminal, .361 inch D Hole

RF Connectors Technical Data Sheet PE4622

Configuration
• BNC Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 75 Ohms • Bulkhead
• Right Angle Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4622 75 ohm BNC female right angle bulkhead mount connector solder attachment solder cup terminal, .361
inch D hole is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for
easier connections in tight spaces. This BNC bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm BNC female right angle bulkhead connector PE4622 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.24 in [31.5 mm]
Width/Dia. 0.595 in [15.11 mm]
Height 0.8 in [20.32 mm]
.
Weight 0.034 lbs [15.42 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Right Angle Bulkhead Mount Connector Solder Attachment Solder Cup
Terminal, .361 inch D Hole PE4622

PE4622 REV 1.1 1
