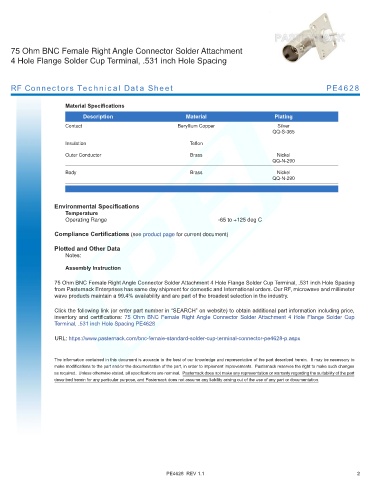

75 Ohm BNC Female Right Angle Connector Solder Attachment
4 Hole Flange Solder Cup Terminal, .531 inch Hole Spacing
RF Connectors Technical Data Sheet PE4628
Material Specifications
Description Material Plating
Contact Beryllium Copper Silver
QQ-S-365
Insulation Teflon
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
.
Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Assembly Instruction
75 Ohm BNC Female Right Angle Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .531 inch Hole Spacing
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Right Angle Connector Solder Attachment 4 Hole Flange Solder Cup
Terminal, .531 inch Hole Spacing PE4628
URL: https://www.pasternack.com/bnc-female-standard-solder-cup-terminal-connector-pe4628-p.aspx
PE4628 REV 1.1 2
