75 Ohm F Male Connector Crimp/Crimp Attachment for RG6

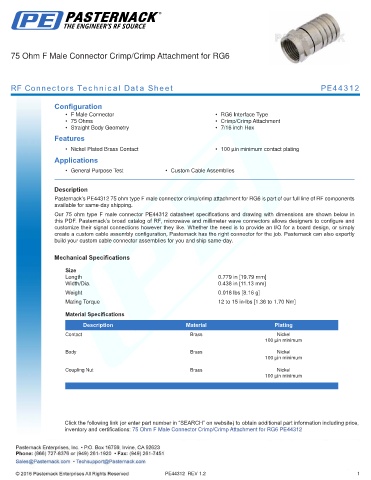

RF Connectors Technical Data Sheet PE44312

Configuration
• F Male Connector • RG6 Interface Type
• 75 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry • 7/16 inch Hex
Features
• Nickel Plated Brass Contact • 100 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44312 75 ohm type F male connector crimp/crimp attachment for RG6 is part of our full line of RF components
available for same-day shipping.
Our 75 ohm type F male connector PE44312 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.779 in [19.79 mm]
Width/Dia. 0.438 in [11.13 mm]
.
Weight 0.018 lbs [8.16 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
Material Specifications
Description Material Plating
Contact Brass Nickel
100 µin minimum
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Crimp Attachment for RG6 PE44312

PE44312 REV 1.2 1
