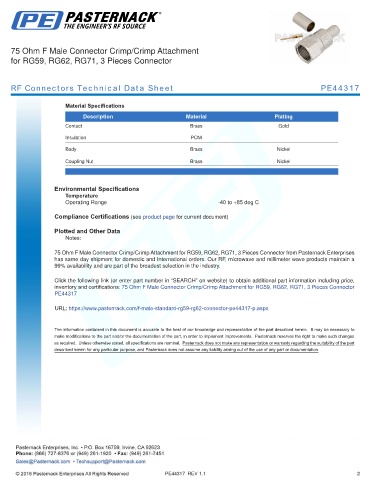

75 Ohm F Male Connector Crimp/Crimp Attachment
for RG59, RG62, RG71, 3 Pieces Connector

RF Connectors Technical Data Sheet PE44317

Material Specifications
Description Material Plating
Contact Brass Gold

Insulation POM
Body Brass Nickel

Coupling Nut Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm F Male Connector Crimp/Crimp Attachment for RG59, RG62, RG71, 3 Pieces Connector from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Crimp Attachment for RG59, RG62, RG71, 3 Pieces Connector
PE44317

URL: https://www.pasternack.com/f-male-standard-rg59-rg62-connector-pe44317-p.aspx

PE44317 REV 1.1 2
