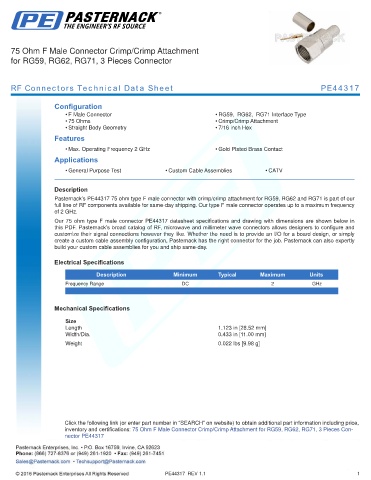

75 Ohm F Male Connector Crimp/Crimp Attachment
for RG59, RG62, RG71, 3 Pieces Connector

RF Connectors Technical Data Sheet PE44317

Configuration
• F Male Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry • 7/16 inch Hex
Features
• Max. Operating Frequency 2 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44317 75 ohm type F male connector with crimp/crimp attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping. Our type F male connector operates up to a maximum frequency
of 2 GHz.
Our 75 ohm type F male connector PE44317 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
.

Mechanical Specifications

Size
Length 1.123 in [28.52 mm]
Width/Dia. 0.433 in [11.00 mm]
.
Weight 0.022 lbs [9.98 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Crimp Attachment for RG59, RG62, RG71, 3 Pieces Con-
nector PE44317

PE44317 REV 1.1 1
