75 Ohm F Male Connector Crimp/Solder Attachment
for RG6-CATV, 3 Pieces Connector

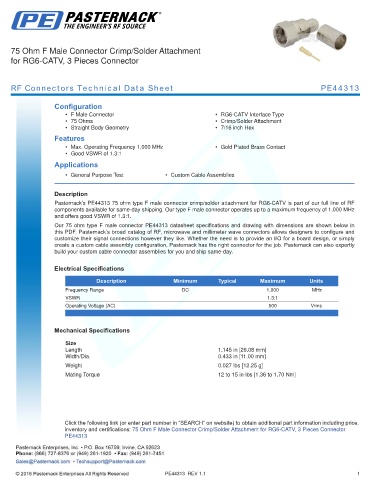

RF Connectors Technical Data Sheet PE44313

Configuration
• F Male Connector • RG6-CATV Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • 7/16 inch Hex
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44313 75 ohm type F male connector crimp/solder attachment for RG6-CATV is part of our full line of RF
components available for same-day shipping. Our type F male connector operates up to a maximum frequency of 1,000 MHz
and offers good VSWR of 1.3:1.
Our 75 ohm type F male connector PE44313 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.145 in [29.08 mm]
Width/Dia. 0.433 in [11.00 mm]
.
Weight 0.027 lbs [12.25 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Solder Attachment for RG6-CATV, 3 Pieces Connector
PE44313

PE44313 REV 1.1 1
