75 Ohm F Male Connector Crimp/Solder
Attachment for RG11, RG216, RG144

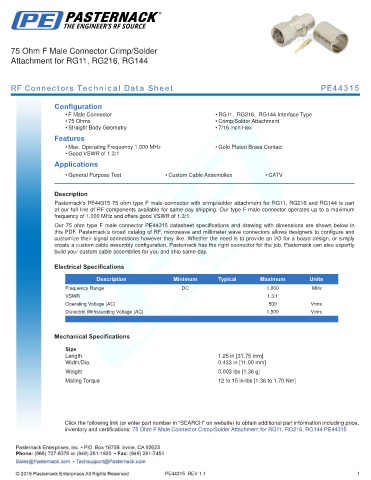

RF Connectors Technical Data Sheet PE44315

Configuration
• F Male Connector • RG11, RG216, RG144 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • 7/16 inch Hex
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44315 75 ohm type F male connector with crimp/solder attachment for RG11, RG216 and RG144 is part
of our full line of RF components available for same-day shipping. Our type F male connector operates up to a maximum
frequency of 1,000 MHz and offers good VSWR of 1.3:1.
Our 75 ohm type F male connector PE44315 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.25 in [31.75 mm]
Width/Dia. 0.433 in [11.00 mm]
.
Weight 0.003 lbs [1.36 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Solder Attachment for RG11, RG216, RG144 PE44315

PE44315 REV 1.1 1
