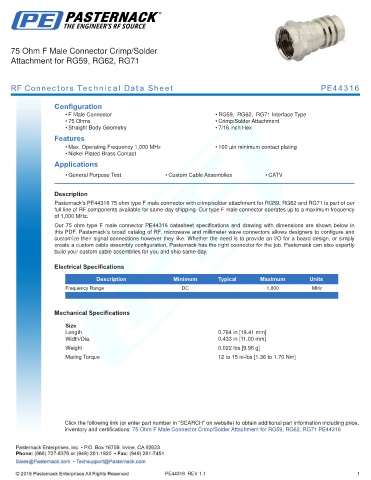

75 Ohm F Male Connector Crimp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE44316

Configuration
• F Male Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • 7/16 inch Hex
Features
• Max. Operating Frequency 1,000 MHz • 100 µin minimum contact plating
• Nickel Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44316 75 ohm type F male connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping. Our type F male connector operates up to a maximum frequency
of 1,000 MHz.
Our 75 ohm type F male connector PE44316 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
.

Mechanical Specifications
Size
Length 0.764 in [19.41 mm]
Width/Dia. 0.433 in [11.00 mm]
.
Weight 0.022 lbs [9.98 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Solder Attachment for RG59, RG62, RG71 PE44316

PE44316 REV 1.1 1
