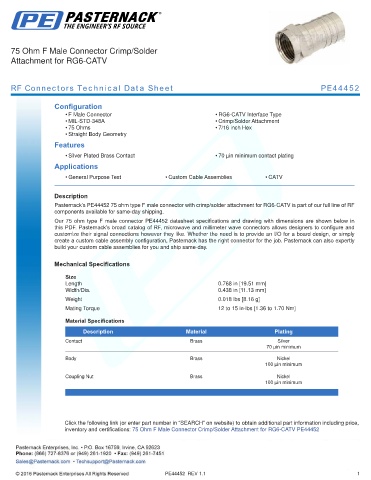

75 Ohm F Male Connector Crimp/Solder
Attachment for RG6-CATV

RF Connectors Technical Data Sheet PE44452

Configuration
• F Male Connector • RG6-CATV Interface Type
• MIL-STD-348A • Crimp/Solder Attachment
• 75 Ohms • 7/16 inch Hex
• Straight Body Geometry
Features
• Silver Plated Brass Contact • 70 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44452 75 ohm type F male connector with crimp/solder attachment for RG6-CATV is part of our full line of RF
components available for same-day shipping.
Our 75 ohm type F male connector PE44452 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.768 in [19.51 mm]
Width/Dia. 0.438 in [11.13 mm]
.
Weight 0.018 lbs [8.16 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
Material Specifications

Description Material Plating
Contact Brass Silver
70 µin minimum
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Solder Attachment for RG6-CATV PE44452

PE44452 REV 1.1 1
