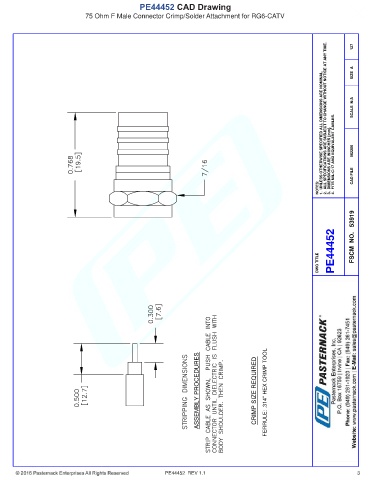

PE44452 CAD Drawing
75 Ohm F Male Connector Crimp/Solder Attachment for RG6-CATV

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062206

NOTES: CAD FILE

PE44452 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES CRIMP SIZE REQUIRED FERRULE: .314" HEX CRIMP TOOL

PE44452 REV 1.1 3
