75 Ohm F Male Connector Crimp/Solder
Attachment for RG179, RG187

RF Connectors

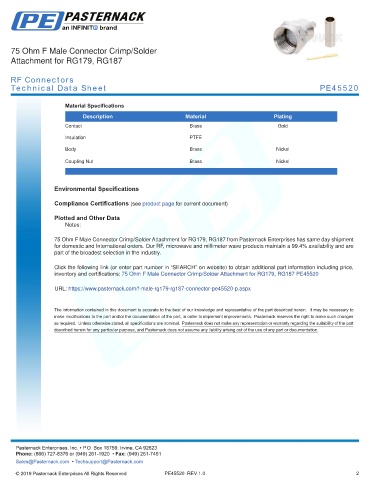

Technical Data Sheet PE45520

Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel

Coupling Nut Brass Nickel
.

Environmental Specifications

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm F Male Connector Crimp/Solder Attachment for RG179, RG187 from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Solder Attachment for RG179, RG187 PE45520

URL: https://www.pasternack.com/f-male-rg179-rg187-connector-pe45520-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45520 REV 1.0 2
