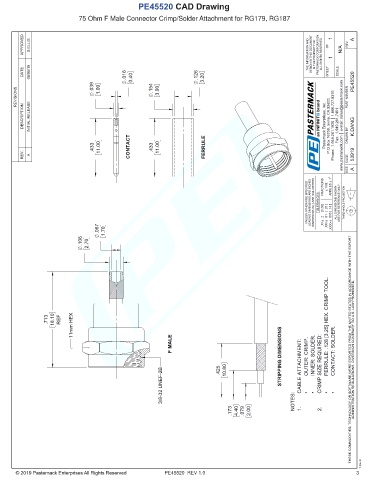

PE45520 CAD Drawing
75 Ohm F Male Connector Crimp/Solder Attachment for RG179, RG187

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 08/05/19 .016 0.40 .126 3.20 SHEET OF SCALE PE45520

REVISIONS .039 1.00 .154 3.90 PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

DRAWN BY
.433 11.00 CONTACT .433 11.00 FERRULE
REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.067 1.70 .X=± .XX=± .XXX=±

.106 2.70

.713 18.10 REF 11mm HEX FERRULE: .128 [3.25] HEX. CRIMP TOOL.

F MALE CONTACT: SOLDER. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.425 10.80 STRIPPING DIMENSIONS CABLE ATTACHMENT: OUTER: CRIMP. INNER: SOLDER. CRIMP SIZE REQUIRED:
3/8-32 UNEF-2B • • • •

.173 4.40 .079 2.00 NOTES: 1. 2.

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE45520 REV 1.0 3
