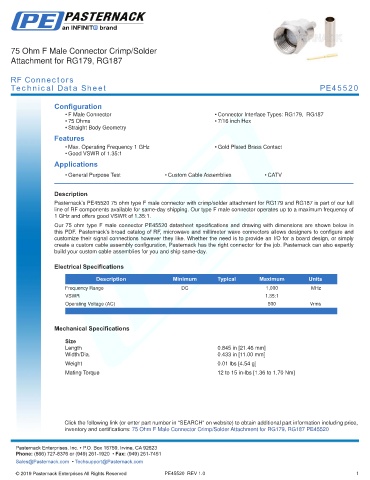

75 Ohm F Male Connector Crimp/Solder
Attachment for RG179, RG187

RF Connectors
Technical Data Sheet PE45520

Configuration
• F Male Connector • Connector Interface Types: RG179, RG187
• 75 Ohms • 7/16 inch Hex
• Straight Body Geometry
Features
• Max. Operating Frequency 1 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE45520 75 ohm type F male connector with crimp/solder attachment for RG179 and RG187 is part of our full
line of RF components available for same-day shipping. Our type F male connector operates up to a maximum frequency of
1 GHz and offers good VSWR of 1.35:1.
Our 75 ohm type F male connector PE45520 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 0.845 in [21.46 mm]
Width/Dia. 0.433 in [11.00 mm]
.
Weight 0.01 lbs [4.54 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Crimp/Solder Attachment for RG179, RG187 PE45520 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45520 REV 1.0 1
