75 Ohm F Male Connector Compression
Attachment for PE-B159, 1855A, Mini 59

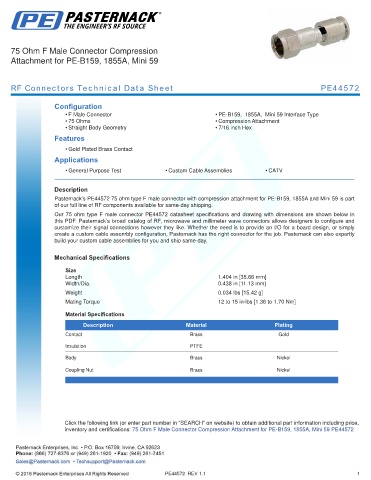

RF Connectors Technical Data Sheet PE44572

Configuration
• F Male Connector • PE-B159, 1855A, Mini 59 Interface Type
• 75 Ohms • Compression Attachment
• Straight Body Geometry • 7/16 inch Hex
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44572 75 ohm type F male connector with compression attachment for PE-B159, 1855A and Mini 59 is part
of our full line of RF components available for same-day shipping.
Our 75 ohm type F male connector PE44572 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.404 in [35.66 mm]
Width/Dia. 0.438 in [11.13 mm]
.
Weight 0.034 lbs [15.42 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel

Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Compression Attachment for PE-B159, 1855A, Mini 59 PE44572

PE44572 REV 1.1 1
