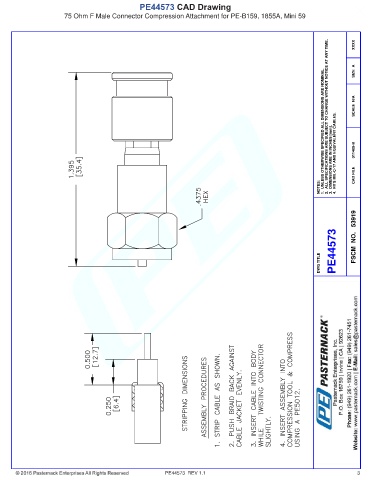

PE44573 CAD Drawing
75 Ohm F Male Connector Compression Attachment for PE-B159, 1855A, Mini 59
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 011409-B
NOTES: CAD FILE
PE44573 FSCM NO. 53919
DWG TITLE
PE44573 REV 1.1 3
