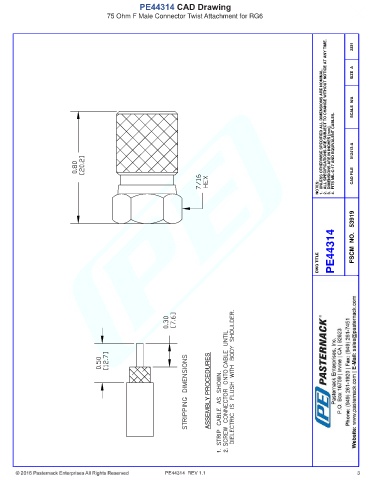

PE44314 CAD Drawing
75 Ohm F Male Connector Twist Attachment for RG6

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2231

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 012413-A

NOTES: CAD FILE

PE44314 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES

1. 2.

PE44314 REV 1.1 3
