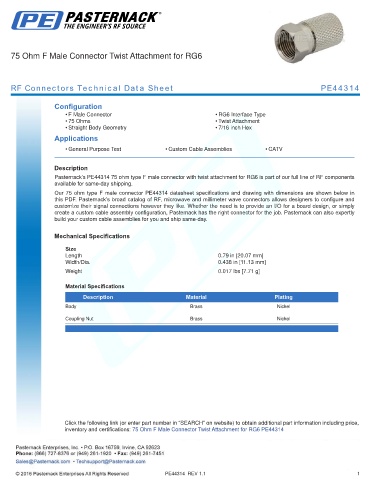

75 Ohm F Male Connector Twist Attachment for RG6

RF Connectors Technical Data Sheet PE44314

Configuration
• F Male Connector • RG6 Interface Type
• 75 Ohms • Twist Attachment
• Straight Body Geometry • 7/16 inch Hex
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44314 75 ohm type F male connector with twist attachment for RG6 is part of our full line of RF components
available for same-day shipping.
Our 75 ohm type F male connector PE44314 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.79 in [20.07 mm]
Width/Dia. 0.438 in [11.13 mm]
.
Weight 0.017 lbs [7.71 g]
.
Material Specifications
Description Material Plating
Body Brass Nickel

Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Twist Attachment for RG6 PE44314

PE44314 REV 1.1 1
