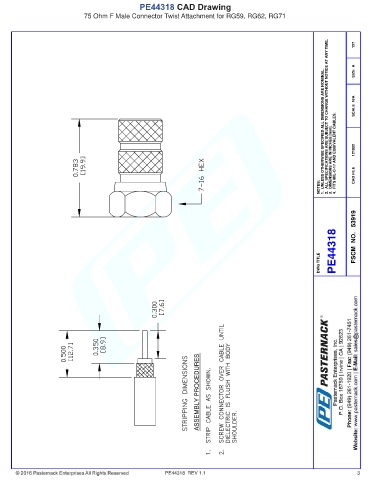

PE44318 CAD Drawing
75 Ohm F Male Connector Twist Attachment for RG59, RG62, RG71
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 121802
NOTES: CAD FILE
PE44318 FSCM NO. 53919
DWG TITLE
ASSEMBLY PROCEDURES
PE44318 REV 1.1 3
