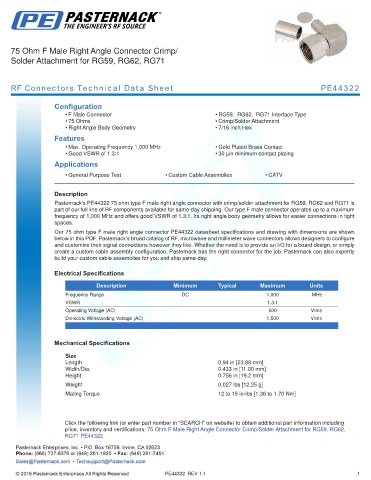

75 Ohm F Male Right Angle Connector Crimp/
Solder Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE44322

Configuration
• F Male Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry • 7/16 inch Hex
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44322 75 ohm type F male right angle connector with crimp/solder attachment for RG59, RG62 and RG71 is
part of our full line of RF components available for same-day shipping. Our type F male connector operates up to a maximum
frequency of 1,000 MHz and offers good VSWR of 1.3:1. Its right angle body geometry allows for easier connections in tight
spaces.
Our 75 ohm type F male right angle connector PE44322 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 0.94 in [23.88 mm]
Width/Dia. 0.433 in [11.00 mm]
Height 0.756 in [19.2 mm]
.
Weight 0.027 lbs [12.25 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm F Male Right Angle Connector Crimp/Solder Attachment for RG59, RG62,
RG71 PE44322

PE44322 REV 1.1 1
