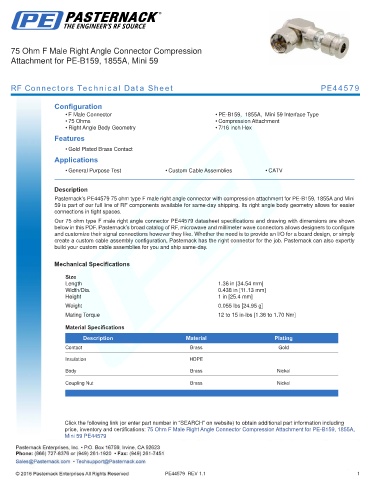

75 Ohm F Male Right Angle Connector Compression
Attachment for PE-B159, 1855A, Mini 59

RF Connectors Technical Data Sheet PE44579

Configuration
• F Male Connector • PE-B159, 1855A, Mini 59 Interface Type
• 75 Ohms • Compression Attachment
• Right Angle Body Geometry • 7/16 inch Hex
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44579 75 ohm type F male right angle connector with compression attachment for PE-B159, 1855A and Mini
59 is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier
connections in tight spaces.
Our 75 ohm type F male right angle connector PE44579 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.36 in [34.54 mm]
Width/Dia. 0.438 in [11.13 mm]
Height 1 in [25.4 mm]
.
Weight 0.055 lbs [24.95 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation HDPE

Body Brass Nickel
Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm F Male Right Angle Connector Compression Attachment for PE-B159, 1855A,
Mini 59 PE44579

PE44579 REV 1.1 1
