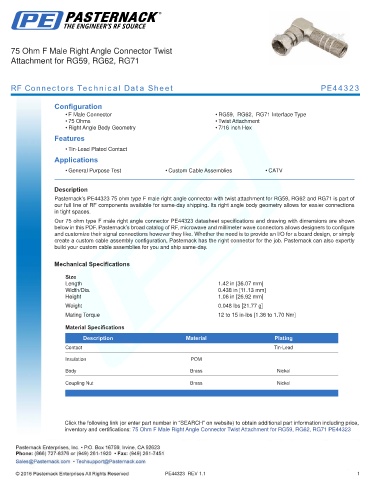

75 Ohm F Male Right Angle Connector Twist
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE44323

Configuration
• F Male Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Twist Attachment
• Right Angle Body Geometry • 7/16 inch Hex
Features
• Tin-Lead Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44323 75 ohm type F male right angle connector with twist attachment for RG59, RG62 and RG71 is part of
our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier connections
in tight spaces.
Our 75 ohm type F male right angle connector PE44323 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.42 in [36.07 mm]
Width/Dia. 0.438 in [11.13 mm]
Height 1.06 in [26.92 mm]
.
Weight 0.048 lbs [21.77 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]
Material Specifications
Description Material Plating
Contact Tin-Lead
Insulation POM

Body Brass Nickel
Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Right Angle Connector Twist Attachment for RG59, RG62, RG71 PE44323

PE44323 REV 1.1 1
