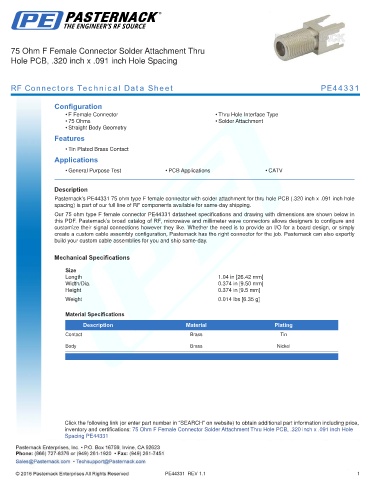

75 Ohm F Female Connector Solder Attachment Thru
Hole PCB, .320 inch x .091 inch Hole Spacing

RF Connectors Technical Data Sheet PE44331

Configuration
• F Female Connector • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Tin Plated Brass Contact
Applications
• General Purpose Test • PCB Applications • CATV
.
Description
Pasternack’s PE44331 75 ohm type F female connector with solder attachment for thru hole PCB (.320 inch x .091 inch hole
spacing) is part of our full line of RF components available for same-day shipping.
Our 75 ohm type F female connector PE44331 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.04 in [26.42 mm]
Width/Dia. 0.374 in [9.50 mm]
Height 0.374 in [9.5 mm]
.
Weight 0.014 lbs [6.35 g]
.
Material Specifications
Description Material Plating
Contact Brass Tin

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Connector Solder Attachment Thru Hole PCB, .320 inch x .091 inch Hole
Spacing PE44331

PE44331 REV 1.1 1
