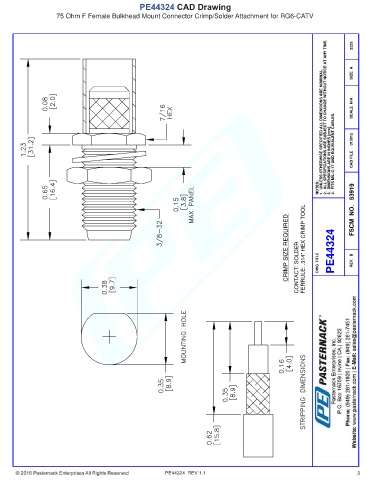

PE44324 CAD Drawing
75 Ohm F Female Bulkhead Mount Connector Crimp/Solder Attachment for RG6-CATV
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 013012 CAD FILE
NOTES: FSCM NO. 53919
CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .314" HEX CRIMP TOOL DWG TITLE PE44324 REV. B
PE44324 REV 1.1 3
