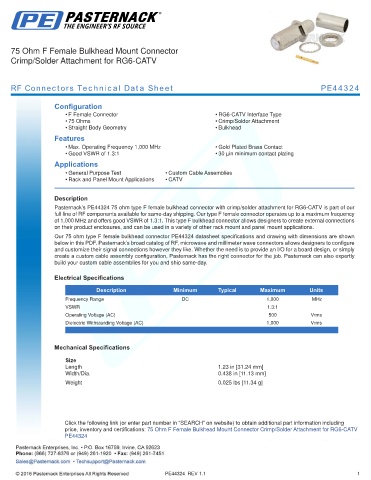

75 Ohm F Female Bulkhead Mount Connector
Crimp/Solder Attachment for RG6-CATV

RF Connectors Technical Data Sheet PE44324

Configuration
• F Female Connector • RG6-CATV Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
• Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE44324 75 ohm type F female bulkhead connector with crimp/solder attachment for RG6-CATV is part of our
full line of RF components available for same-day shipping. Our type F female connector operates up to a maximum frequency
of 1,000 MHz and offers good VSWR of 1.3:1. This type F bulkhead connector allows designers to create external connections
on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm type F female bulkhead connector PE44324 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.23 in [31.24 mm]
Width/Dia. 0.438 in [11.13 mm]
.
Weight 0.025 lbs [11.34 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm F Female Bulkhead Mount Connector Crimp/Solder Attachment for RG6-CATV
PE44324
