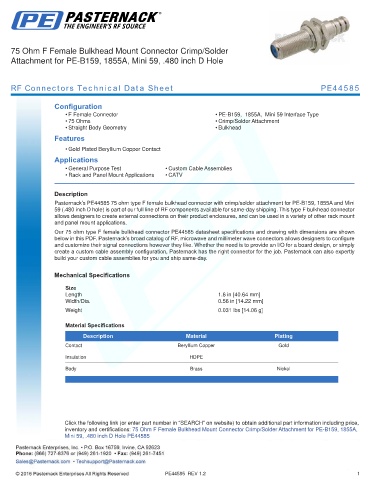

75 Ohm F Female Bulkhead Mount Connector Crimp/Solder
Attachment for PE-B159, 1855A, Mini 59, .480 inch D Hole

RF Connectors Technical Data Sheet PE44585

Configuration
• F Female Connector • PE-B159, 1855A, Mini 59 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
• Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE44585 75 ohm type F female bulkhead connector with crimp/solder attachment for PE-B159, 1855A and Mini
59 (.480 inch D hole) is part of our full line of RF components available for same-day shipping. This type F bulkhead connector
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
Our 75 ohm type F female bulkhead connector PE44585 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.6 in [40.64 mm]
Width/Dia. 0.56 in [14.22 mm]
.
Weight 0.031 lbs [14.06 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold

Insulation HDPE
Body Brass Nickel

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Bulkhead Mount Connector Crimp/Solder Attachment for PE-B159, 1855A,
Mini 59, .480 inch D Hole PE44585

PE44585 REV 1.2 1
