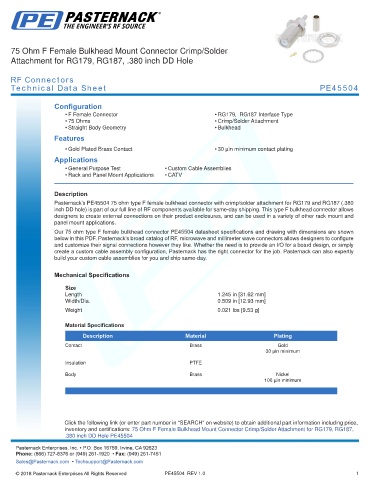

75 Ohm F Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG179, RG187, .380 inch DD Hole

RF Connectors
Technical Data Sheet PE45504

Configuration
• F Female Connector • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
• Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE45504 75 ohm type F female bulkhead connector with crimp/solder attachment for RG179 and RG187 (.380
inch DD hole) is part of our full line of RF components available for same-day shipping. This type F bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our 75 ohm type F female bulkhead connector PE45504 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.245 in [31.62 mm]
Width/Dia. 0.509 in [12.93 mm]
.
Weight 0.021 lbs [9.53 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Bulkhead Mount Connector Crimp/Solder Attachment for RG179, RG187,
-
.380 inch DD Hole PE45504 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45504 REV 1.0 1
