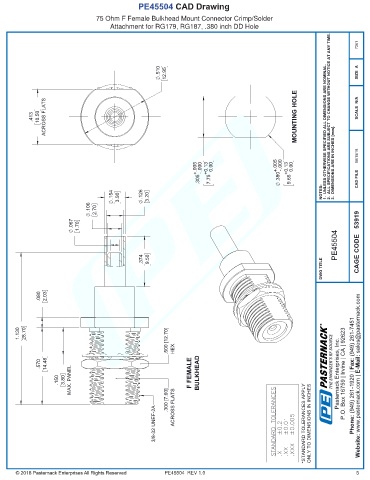

PE45504 CAD Drawing
75 Ohm F Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG179, RG187, .380 inch DD Hole

7361

.510 12.95 SIZE A

.413 10.50 ACROSS FLATS MOUNTING HOLE 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

-.000 3. DIMENSIONS ARE IN INCHES [mm]. 08/15/18
.305 +.005 -.000 7.75 +0.13 0.00 .380 +.005 9.65 +0.13 0.00 CAD FILE

.154 3.90 .126 3.20 NOTES:

.106 2.70

.067 1.70
PE45504 CAGE CODE 53919

.374 9.50
DWG TITLE

.080 2.03

R
1.130 28.70
P.O. Box 16759 | Irvine | CA | 92623
Pasternack Enterprises, Inc.
.500 [12.70] HEX

.570 14.48 THE ENGINEER'S RF SOURCE

F FEMALE BULKHEAD Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.150 3.80 MAX. PANEL .300 [7.60]

3/8-32 UNEF-2A ACROSS FLATS STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45504 REV 1.0 5
