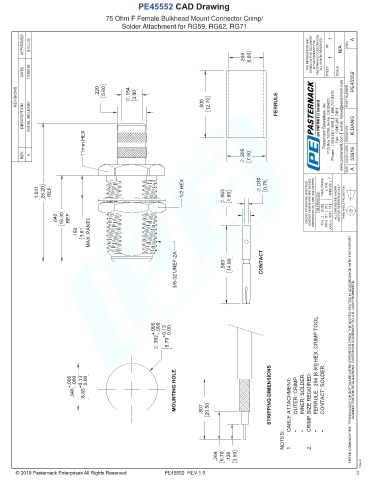

PE45552 CAD Drawing
75 Ohm F Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG59, RG62, RG71

APPROVED S.ELLIS 1 N/A REV A

.260 6.60 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1

DATE 10/08/19 SCALE

PE45552
REVISIONS .220 5.60 .154 3.90 .500 12.70 FERRULE PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

11mm HEX DRAWN BY

REV. A .295 7.50 CAGE CODE SIZE 53919 A

1.031 26.20 REF 1/2 HEX .063 1.60 .030 0.76 UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS ± 1/32 ANGLES ± 1° ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.642 16.30 REF .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±

.150 3.81 MAX. PANEL

3/8-32 UNEF-2A .583 14.80 CONTACT

.382 +.005 -.000 9.70 +0.13 0.00 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

FERRULE: .256 [6.50] HEX. CRIMP TOOL.
.348 +.005 -.000 8.85 +0.13 0.00 MOUNTING HOLE INNER: SOLDER. CONTACT: SOLDER.

.807 20.50 STRIPPING DIMENSIONS CABLE ATTACHMENT: OUTER: CRIMP. CRIMP SIZE REQUIRED:
