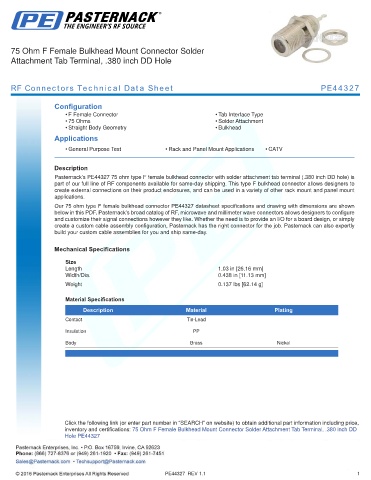

75 Ohm F Female Bulkhead Mount Connector Solder
Attachment Tab Terminal, .380 inch DD Hole

RF Connectors Technical Data Sheet PE44327

Configuration
• F Female Connector • Tab Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Applications
• General Purpose Test • Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE44327 75 ohm type F female bulkhead connector with solder attachment tab terminal (.380 inch DD hole) is
part of our full line of RF components available for same-day shipping. This type F bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our 75 ohm type F female bulkhead connector PE44327 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.03 in [26.16 mm]
Width/Dia. 0.438 in [11.13 mm]
.
Weight 0.137 lbs [62.14 g]
.
Material Specifications
Description Material Plating
Contact Tin-Lead

Insulation PP
Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Bulkhead Mount Connector Solder Attachment Tab Terminal, .380 inch DD
Hole PE44327

PE44327 REV 1.1 1
