75 Ohm F Female Bulkhead Connector Solder Attachment
Thru Hole PCB, .340 inch x .091 inch Hole Spacing

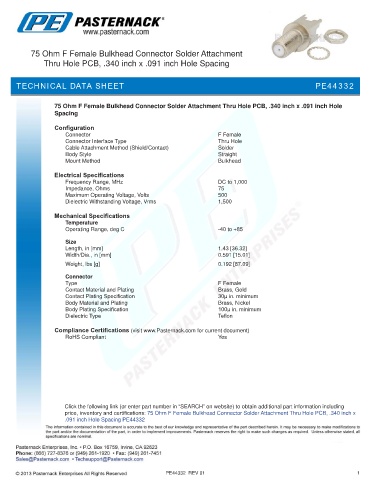

TECHNICAL DATA SHEET PE44332

75 Ohm F Female Bulkhead Connector Solder Attachment Thru Hole PCB, .340 inch x .091 inch Hole
Spacing

Configuration
Connector F Female
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range, MHz DC to 1,000
Impedance, Ohms 75
Maximum Operating Voltage, Volts 500
Dielectric Withstanding Voltage, Vrms 1,500

Mechanical Specifications
Temperature
Operating Range, deg C -40 to +85

Size
Length, in [mm] 1.43 [36.32]
Width/Dia., in [mm] 0.591 [15.01]
.
Weight, lbs [g] 0.192 [87.09]
Connector
Type F Female
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm F Female Bulkhead Connector Solder Attachment Thru Hole PCB, .340 inch x
.091 inch Hole Spacing PE44332

PE44332 REV 01 1
