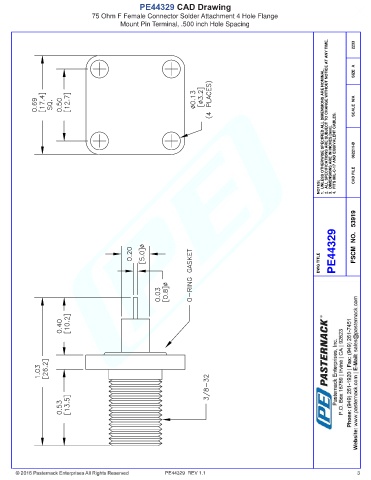

PE44329 CAD Drawing
75 Ohm F Female Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, .500 inch Hole Spacing
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062211-B
NOTES: CAD FILE
PE44329 FSCM NO. 53919
DWG TITLE
PE44329 REV 1.1 3
